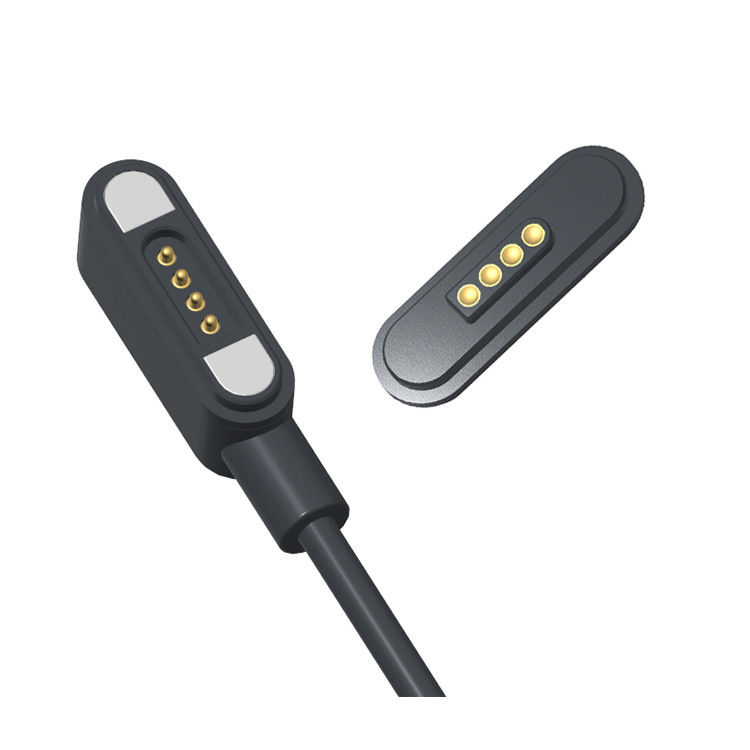

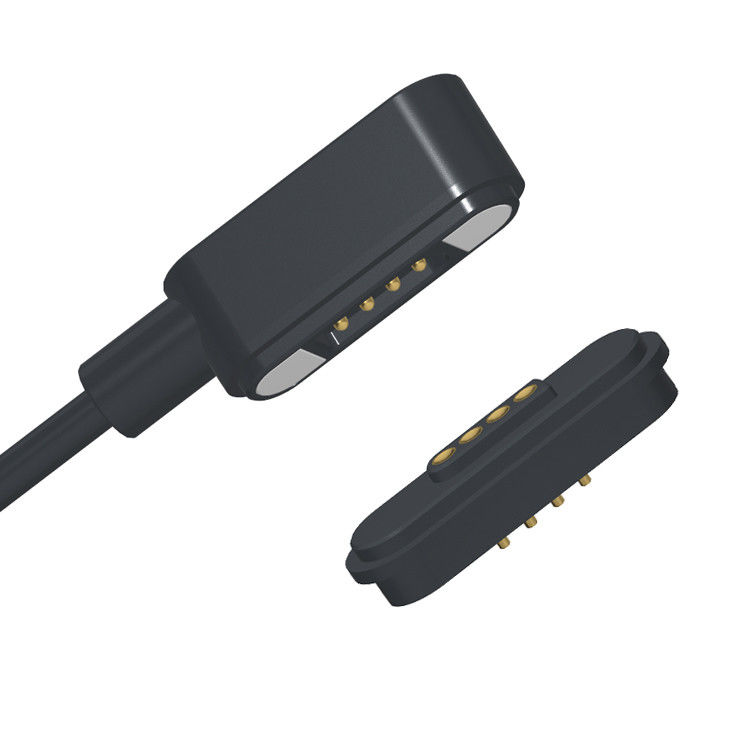

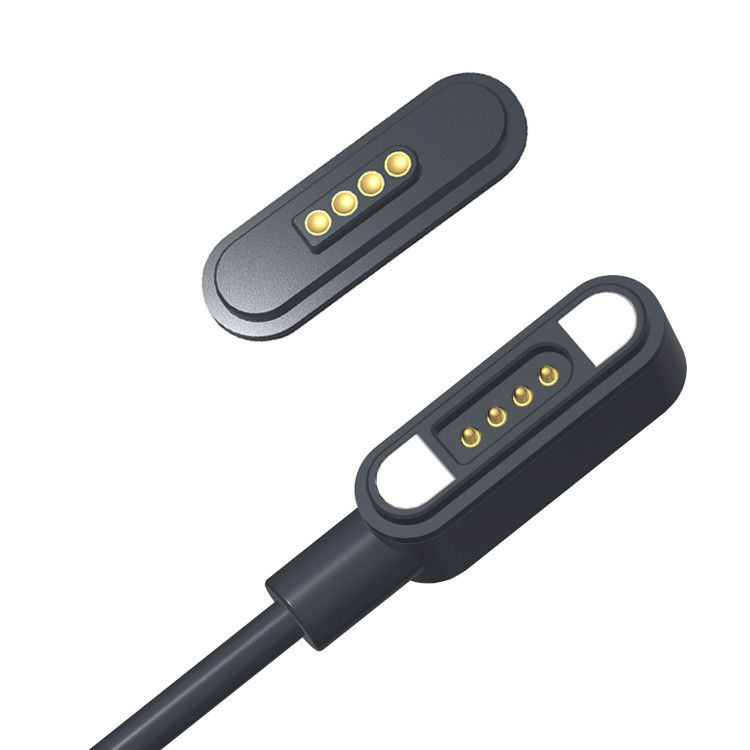

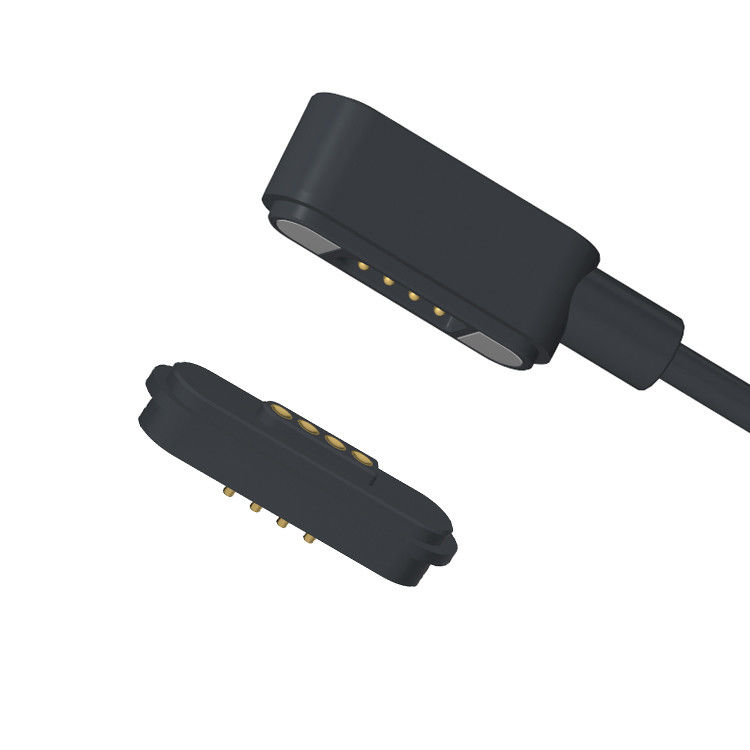

4Pin Male And Female Magnetic Cable Connector For Household Products With TPE Cable

4Pin Male And Female Magnetic Cable Connector For Household Products With TPE Cable.

UPE – Professional Magnetic Connector & Cable Manufacturer | Custom Solutions

UPE is a trusted leader in designing and manufacturing high-performance magnetic connectors and magnetic cable connectors, delivering innovative, reliable, and customizable connectivity solutions for a wide range of industries.

To ensure the contact mechanical life of the pogo pin, NEVER compress it beyond the defined working stroke specified in the drawing. Over-compression can damage the internal spring, leading to reduced performance or failure.

Materials:

Magnet Plug: Magnetic Male Plug

Internal Molding: PE Transparent

Over molding:TPE Black

Wire:OD3.5 4C 28AWG 2C 22AWG Black TPE

CableTie: Black PVC Metalel liptic cable tie

USB Plug: USB Male Plug

Housing: Black HTN UL94V-0

Pogo Pin: Brass C6801 Plating Au 0.125um
Female pin: Brass C6801 Plating Au 0.125um
Magnet: N52 NdFeB Plating Ni Cu Ni

HTN Housing (UL94V-0): Suitable for high-temperature environments and meets flammability safety standards.

Brass C6801 Pins: Good machinability and conductivity; gold plating enhances durability and contact resistance.

N52 Magnet with Ni-Cu-Ni Plating: High magnetic strength (N52 is the strongest commercial grade) with corrosion-resistant plating.

Mechanical:

Contact force:80g±20g at 1.0mm working storke

Full storke: 1.1mm

Male and female adsorption Life test: 10,000cycle

Electrical:

Rated voltage:DC12V; Rated voltage: 3AMax.

Contact resistance of spring pin: 50 milliohm Max.

Environmental performance:

Operation Temperature: -25℃ to +80℃

Environmental Test: Salt Spray 24 hours

4Pin Male Magnetic  Connectors & Female Magnetic Connector Parameter:

4Pin Male Magnetic Cable Connector Technical Drawing

4Pin Female Magnetic Connector Technical Drawing

4Pin Magnetic Cable Connector Mnode of Connection

Packaging view:

Advantages of Magnetic Connector:

1. Effortless Connectivity
✔ Automatic Adsorption – Smart, user-friendly design enables instant and secure connections with magnetic alignment.
✔ Anti-Fall Protection – Easily detaches from the charging interface while keeping devices stable, reducing accidental drops.

2. Unmatched Durability
✔ Extended Lifespan – Rated for 100,000–200,000 cycles, ensuring long-term reliability.
✔ IPX8 Waterproof & Dustproof – Female end designed for harsh environments (submersion up to 1M for 30 mins).

3. High-Performance Charging & Data Transfer
✔ Fast Charging (5A–10A) – Supports high-current transmission for rapid power delivery.
✔ High-Speed Signal Transmission – Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance.

4. Customizable & Safe Design
✔ Aesthetic Flexibility – Tailored appearance to match your device’s design language.
✔ Anti-Short Circuit & Foolproof – Built-in protection against misuse and electrical faults.

Magnetic connector products application:

1.Wearable devices, intelligent positioning equipment, children's smart wristbands, smart watches, wearable mobile phones,Bluetooth headsets, etc.) data cable, charging cable, magnetic strip wire end connection

2.Medical equipment,wireless equipment,data communications equipment,telecommunication equipment,Automation and industrial equipment,audio-visual equipment

3.Aviation ,aerospace electronic,military communication

4.Automotive,car navigation,test and measurement equipment

5.Consumer Electronics(mobile phones,tablet computers,Bluetooth headsets,camera,watch,portable consumer electronic products and many other electronic fields.)

Why UPE shall be your partner?

✔ Premium Quality – Durable, high-efficiency magnetic connectors for secure connections.
✔ Custom Solutions – Tailored designs to meet specific application requirements.
✔ Innovative Technology – Advanced magnetic coupling for easy, safe, and quick connections.
✔ Wide Applications – Ideal for consumer electronics, medical devices, industrial equipment, and more.
✔ Reliable Performance – Engineered for longevity and consistent connectivity.

How to Place Your Magnetic Cable Connector Order with UPE

1. Submit Your Requirements
Provide details such as:

.Connector type (power, data, hybrid, waterproof, etc.)

.Voltage & current ratings

.Cable length & specifications

.Magnetic polarity & alignment preferences

.Quantity & lead time

Special requirements (IP rating, shielding, certifications, etc.)

. Option 1: Fill out our RFQ (Request for Quote) Form on our website.
. Option 2: Email your specs directly to sunion@upetech.net (or your designated contact).

2. Receive a Custom Quote
Our engineering team will review your requirements.

We’ll provide a competitive quote, including:Pricing/Lead time/Prototyping options (if needed)

3. Approve & Confirm Order
Once the quote is approved, we’ll finalize the design & production schedule.

For new designs, we may offer 3D models or samples for testing.

4. Production & Quality Assurance
UPE manufactures your order with strict quality control checks.

We can provide test reports & certifications upon request.

5. Fast Delivery & Support
Your order ships via your preferred logistics method (DHL, FedEx, sea freight, etc.).

Our team remains available for technical support & future orders.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
